Edscha TS VP-Standard

With the introduction of the VP-Standard Full Tarpaulin Roof, Edscha Trailer Systems is displaying its consistent backing of a strategy of combining low weight, durability, functionality, adaptability and convenient handling in intelligent roof systems.

Robust and weight-saving plastic roller carriages and joints in combination with steel bows and the proven, dismountable steel rail frame segments form the basis for the new Full Tarpaulin Roof VP-Standard. The system offers mature kinematics in a reduced installation space and thus provide more load volume and needs smaller operating forces without any compromises with respect to assembly and durability.

Advantages

  • No torsion effects in the vehicle structure thanks to externally fitted runners
  • Independent of negative external factors such as roof loads and the resulting profile torsion
  • A barrier-free loading area is made possible with the dismountable steel rail frame
  • Robust and weight-saving plastic roller carriages and joints with steel bows and the proven, dismountable steel rail frame segment system
  • Robust joints with optimised fold kinematics
  • External, coated and low-friction rollers
TIR for customs purposes
TIR for customs purposes

Weight-saving plastic roller carriages and joints
Weight-saving plastic roller carriages and joints
Robust joints with optimised fold kinematics
Robust joints with optimised fold kinematics
External, coated and low-friction rollers
External, coated and low-friction rollers

Special features

  • Defined joint installation results in reliable tarpaulin folding
  • Weight from approx. 15 kg/m
  • Plastic roller carriages with transverse ball bearings
  • Reduced number of bows because of 650 mm plastic joints
  • Rail frames with plug-in connections

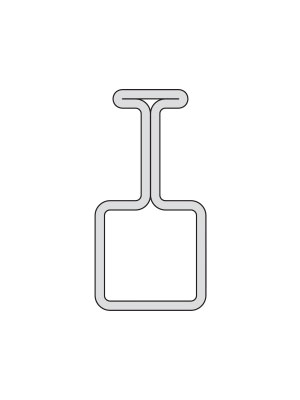

  • New stamped roof bows with cross section 30 x 30 mm
  • Extremely durable plastic joints with load-optimised material structure
Edscha TS top coupling
Edscha TS top coupling
Rail lock
Rail lock
Coupling for the rail segments
Coupling for the rail segments

Equipment options

  • Standard end carriage
  • Optional execution for rail loading
  • Optional with end bow or portal beam
  • Optional combination with Tailwing
  • Serial TIR for customs purposes
  • Additional locking Option
  • Available in different rear closure variations
