Edscha TS QuickCurtain

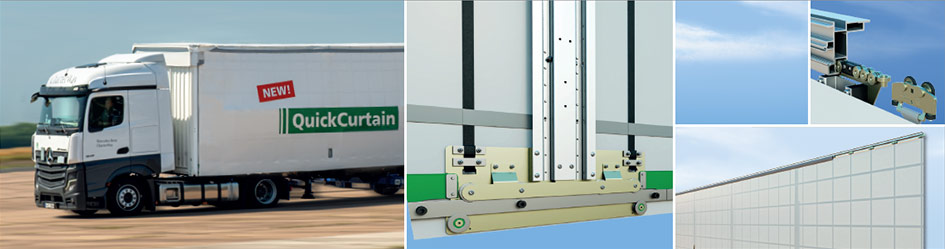

With the QuickCurtain system, the entire superstructure with vertical clamping tubes on the bulkhead and rear portal, as well as the Edscha TS roof rails (with SPR4 tarpaulin rollers) continues to be the standard series and is completed by our new LP4 rolling stanchion and the lower rolling anchors on a curtain specially designed by us.

The system is opened completely in just a few steps by means of moving stanchions and load securing elements.

QuickCurtain is modularly usable on all Edscha TS & SESAM roofs, with no restrictions on load volume.

• Convenient one-man operation
• Easy and quick to open (≤ 1 min)
• Fully integrable and always tightly sealed
• Does not affect the loading volume
• Robust and easy to service
• Integrated load securing
• No insertion boards required
• Can be installed in standard CS vehicles (with suitable chassis)
• No dead centre tensioners to operate
• Rail made of flat steel and segmented for ease of maintenance and robustness
• No interference with the assembly space for clamping centre support
• Horizontal series clamping systems are retained for robust operation and favourable conversion from the CS superstructure
• The package length is 25% of the length of the loading area
• The tarpaulin is included in the delivery (can be labelled as desired)
• Folding handles for better ergonomics
